DL4F Wash™

Name: DL4F Wash™
Brand: Robe Lighting s.r.o.

Arrêté

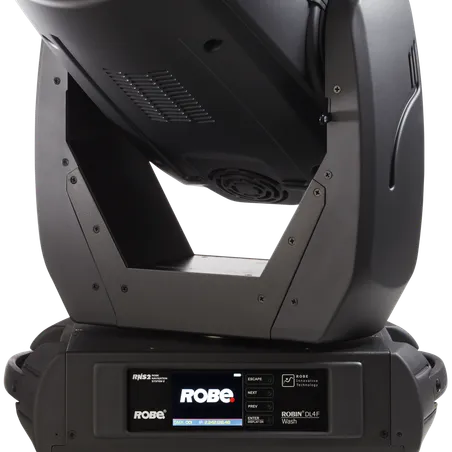

DL4F Wash™

Arrêté

This is the perfect companion to the ROBIN DL4S Profile, the new ROBIN DL4F Wash is based on the same RGBW LED module with improved brightness and with specifically modified color mixing and dimming for extra smooth, stepless operation especially at minimum brightness levels.

To magnify the already perfectly smooth colours, fades and dimming, the DL4F features innovative LED driving system for improved, extremely high definition dimming curve for all R, G, B, W colours, with 18 bit resolution. With a perfectly smooth output via the front Fresnel lens, this fixture has been optimized for those wanting an even light output with no shadows (RGB breakups and shadows are not present even when on closely positioned trussing or other objects.) Mechanical features include a newly designed linear motorized zoom of 5.5° – 60° and a diffusion filter for extension of the zoom up to 75°. The fixture uses a internal Barndoor module for creating different shapes. The module consists of four individually controllable blades and is rotatable by plus or minus 90 degrees. Advanced software features include RGBW or CMY colour mixing, a set of calibrated whites, CTO, Tungsten lamp emulation (amber shift) and more.

Source

480 W RGBW LED engine

Flux lumineux

5.160 lm

Plage de Zoom

5.5°-60° (75° with frost)

Effets

internal barndoor module

Innovations

DataSwatch™ - bibliothèque intégrée de couleurs

La bibliothèque de couleurs virtuelles intégrée DataSwatch™ pour les projecteurs LED Robe comprend jusqu'à 237 couleurs et tons préprogrammés et calibrés, permettant une programmation rapide et précise.

L3™ - Low Light Linearity System

Le système L3™ Low Light Linearity System produit des fondus au noir imperceptibles et ultras doux.

Emulation tungstène

Une fois la fonction activée, le projecteur imite la température de couleur d'une lampe halogène lorsque vous diminuez la luminosité pour produire ce rougeoiement traditionnel.

Écran tactile QVGA Robe

L'écran tactile QVGA Robe permet un accès complet à toutes les fonctions de configuration et de diagnostic des projecteurs grâce à une navigation très intuitive.

Vidéo produit

Accessoires

Spécifications Techniques

Tout étendreTélécharger PDFTout réduire

Source

Light source type: 480 W RGBW LED engine

LED life expectancy: min. 20 000 hours

Control: Automatic and remote on/off

Light source warranty: 3 years or 20.000 hours

Système optique

Effets et fonctions dynamiques

Colour mixing mode RGBW or CMY

Variable CTO: 2.700K - 8.000K

Virtual Colour Wheel: preprogrammed 237 colours including whites (2.700K, 3.200K, 4.200K, 5.600K and 8.000K)

Tungsten lamp effect at whites: 2.700K and 3.200K

Internal barndoors: individual position control of 4 “doors”, +/- 90° module rotation (Patented)

Frost: Separate

Motorized zoom

Electronic strobe effect with variable speed up to 20 Hz

Pre-programmed random strobe & pulse effects

High resolution electronic dimming: 0 - 100%

Contrôle et programmation

Setting & Addressing: ROBE Navigation System 2 (RNS2)

Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding

Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN

Wireless CRMX™ technology from Lumen Radio

DMX Protocol modes: 3

Control channels: 29, 23, 21

Pan/Tilt resolution: 16 bit

Colour mixing: 8 or 16 bit (internal 18 bit)

Internal barndoor module movement & rotation: 8 bit

Frost: 8 bit

Zoom: 8 or 16 bit

Dimmer: 8 or 16 bit (internal 18 bit)

Mouvement

Volets internes

Spécifications thermiques

Spécifications électriques et connectique

Certifications

Spécification mécanique

Accroche

Éléments inclus

Accessoires optionnels
