pixelPATT™

Name: pixelPATT™
Brand: Robe Lighting s.r.o.

LED

pixelPATT™

LED

Joining Robe’s line of retro style lighting products is pixelPATT, the latest addition to the PATT family. In spite of its eye catching retro design, pixelPATT is based on modern LED pixel controlled technology.

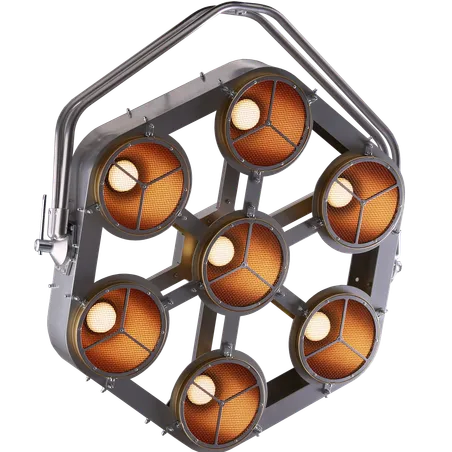

The pixelPATT is composed of 7x 40W RGBW LED multi-chips, one in the centre surrounded by a ring of six, housed in a super-slim and lightweight brushed metal frame. Aesthetically it keeps the dimensions and attractive curvature of the PATT 2013 and the picklePATT, and this will also make it desirable for its physical appearance as well as for a light source. In order to make the pixelPATT elegant and a lightweight design, it has a remote Power and Data box PATT Driver, which is connected with the pixelPATT through an industry standard colour scroller cable with 4-pin XLR connectors. For easy installation the pixelPATT can be connected or disconnected from the PATT Driver under power.

The pixelPATT is an ideal fixture for television broadcasts, concerts, fashion shows or any type of event from awards to brand activations.

Source

7x 40W RGBW multichips

Effets

Individual control of each RGBW pixel, Tungsten lamp emulation

Innovations

L3™ - Low Light Linearity System

Le système L3™ Low Light Linearity System produit des fondus au noir imperceptibles et ultras doux.

DataSwatch™ - bibliothèque intégrée de couleurs

La bibliothèque de couleurs virtuelles intégrée DataSwatch™ pour les projecteurs LED Robe comprend jusqu'à 237 couleurs et tons préprogrammés et calibrés, permettant une programmation rapide et précise.

Emulation tungstène

Une fois la fonction activée, le projecteur imite la température de couleur d'une lampe halogène lorsque vous diminuez la luminosité pour produire ce rougeoiement traditionnel.

GDTF – General Device Type Format

Le General Device Type Format crée une définition unifiée pour l'échange de données relatives au fonctionnement des projecteurs intelligents, tels que les projecteurs motorisés. Le format de fichier est aisément lisible par les utilisateurs et a été développé à partir de formats open source.

Vidéo produit

Accessoires

Spécifications Techniques

Tout étendreTélécharger PDFTout réduire

Source

Light source type: 7x 40W RGBW multichips

LED life expectancy: min. 50.000 hours

Typical lumen maintenance: L70/B50 @ 50.000 hours

Système optique

Effets et fonctions dynamiques

Colour mixing mode RGBW or CMY

Individual control of each RGBW pixel

Variable CTO: 2.700K - 8.000K

Virtual Colour Wheel: with 66 preset swatches

Pre-programmed pixel effects with colour, dimming and strobe chases, waves and pulses at variable speed and direction

Shutter: Electronic with variable speed strobe (max. 20 flashes per second)

Pre-programmed random strobe & pulse effects

High resolution electronic dimming: 0 - 100%

Contrôle et programmation

Spécifications thermiques

Spécifications électriques et connectique

PATT Driver:

Power supply: Electronic auto-ranging
Input voltage range: 100 - 277 V, 50/60 Hz
Power consumption: 240 W
Power in/out connector: Neutrik powerCON TRUE1 in/out
DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
Embeded Ethernet switch 10/100 Mbps: 1x IN/1x Out
Ethernet port in/out: RJ45
Power and Data out: Locking 4-pin XLR (from PATT Driver to the pixelPATT)

pixelPATT:

Power and Data in: Locking 4-pin XLR

Certifications

Spécification mécanique

Accroche

Éléments inclus

Accessoires optionnels

PATT Driver:

Standard version 10055002
Wireless version 10055004

Tripod: 10980374

Floor stand: 10980259

Spigot: 10980260

Mounting bracket: 10980435

Doughty Trigger Clamp: 17030386

Safety wire 36 kg: 99011963

Mains Cable powerCON TRUE1 In/Schuko, 2m, Indoor: 13052405

Mains Cable powerCON TRUE1 In/US, 2m, Indoor: 13052406

Mains Cable powerCON TRUE1 In/CEE 16A, 2m, Indoor: 13052445

Mains Cable powerCON TRUE1 In/Open ended, 2m, Indoor: 13052407

Daisy Chain powerCON TRUE1 In/Out, EU, 2m, Indoor: 13052439

Daisy Chain powerCON TRUE1 In/Out, US, 2m, Indoor: 13052440

Daisy Chain powerCON TRUE1 In/Out, EU, 5m, Indoor: 13052444

Data cable 4-pin XLR 10m, ferite, EU: 13052797

Data cable 4-pin XLR 5m, ferite, EU: 13052798

Data cable 4-pin XLR 10m, ferite, US: 13052799

Data cable 4-pin XLR 5m, ferite, US: 13052800

Dual Top Loader Case: 10120212
