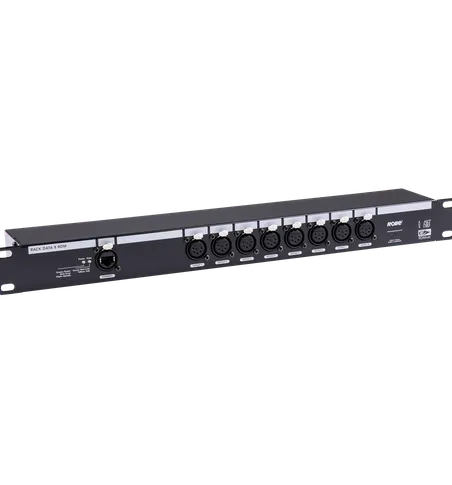

Rack Data 8 RDM is designed to be mounted in a 19” 1U rack enclosure. Its ultra-slim depth of 73mm makes it possible to mount 2 products ‘back-to-back’ per 1U slot if desired. The product is supplied with a standard powerCON® TRUE1 power inlet.

The product offers protection against electrical transients on the outputs.

Configuration is achieved over the network using the internal web-server. DHCP is supported for automatic IP address allocation.

• 1U 19” rack mount, 73mm depth

• Neutrik Ethercon & XLR5 connectors

• 10/100BaseT network input

• 8 DMX512 ports, compatible with all variants of DMX, including DMX512-A

• Art-Net, sACN, RDMnet RPT & LLRP compatible

• mDNS compliant

• RDM (E1.20 - 2010/2024) compatible

• Power & Ethernet LED indicators

• Outputs protected against electrical transients

• Default IP address 2.x.y.z

• Configurable using internal web-server

• DHCP supported

• Factory reset and Squawk button

• powerCON® TRUE1 power inlet
